Surface Roughness Gauge SYT310 (Standard configuration + KS55 +
KS110 + KS120)

SURFACE ROUGHNESS GAUGE SYT310 (STANDARD CONFIGURATION + KS55 +
KS110 + KS120)

Digunakan untuk mengukur kehalusan permukaan. Biasanya untuk besi dan stainless.

  • Stylish design with plastic shell, inspired by “TRANSFORMERS”;
  • Visual waveform display;
  • Electromechanical integration design, small volume, light weight, easy to use;
  • Using DSP chip to control and data processing, high speed, low power consumption;
  • 128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
  • Intuitive and rich display information, can display all the parameters and graphics;
  • Compatible with ISO, DIN, ANSI, JIS national standards;
  • Residual quantity icon, prompting the user to charge;
  • Continuous working time: more than 20 hours;
  • Real-time clock settings and display, convenient data recording and storage;
  • With automatic dormancy, automatic shutdown and power saving function;
  • Multi-info Display: measurement information, menu prompt, fault and power switch information indicated.
  • With PC software, can be connected to a computer and printer
  • Optional different sensor, measuring platform, mini printer, extension rod and other accessories;
  • Support OEM Service, high price performance.
Standard Configuration
ITEMQTY
SYT310 Host1 PC
Standard Sensor KS1001 PC
Standard Calibration Block1 PC
Bracket for Calibration Block1 PC
Adjustable Support1 PC
Power Charger1 PC
USB Cable1 PC
PC Software1 PC
User manual1 PC
Instrument case1 PC
Packaging Size size: 38*32*13, weight : about 3Kg

Related Optional Items

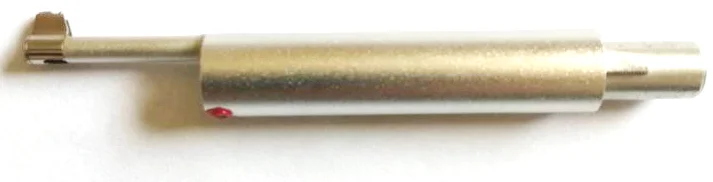

KS55 – Extending Rod, extending rod increases the depth for pickup to enter the part. extending 50mm long.

KS90 – Right Angle Rod, change the position of the sensor, mostly use for measure surface of particular groove.

KS100 – Small Hole Sensor, measures flat surface, shaft ; when measure inner hole surface, the diameter of inner hole are required>5mm, depth>22mm.

KS110 – Curved Surface Sensor, to measure smooth cylindrical surface which radius is larger than 3mm, for the large radius smooth spherical surface and other surface also can obtain good approximation, need to work with platform KA520 or KA620.

KS120 -very small hole Sensor, to measure the inner surfaces of holes with radius more than 2mm, better to work with platform KA520 or KA620.

KS130 – Groove sensor, measure flat surface, grooves with width ≥2mm, depth ≤3mm, and down step with height ≤3mm, also to equipped with Measuring fixture, can measure cylindrical surface.

KS131 – Deep Groove Sensor, measure groove with width wider than 3mm and depth deeper than 10mm, or the surface roughness of step with height less than 10mm, also can used to measure the planar, cylindrical used with platform,better to work with platform KA520 or KA620.

KA520 -Metal Substrate Working platform, adjustable height 200mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

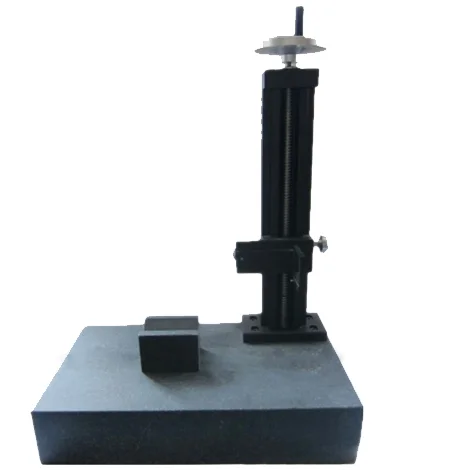

KA620 -Marble Substrate Working Platform, adjustable height 300mm. With flexible and stable operation and wider application range. Roughness of complex shapes can also be measured. Measurement stand enable the adjustment of the position of stylus to be more precise and measurement to be more stable. If Ra value of measured surface is relatively low, Using measurement platform is recommended.

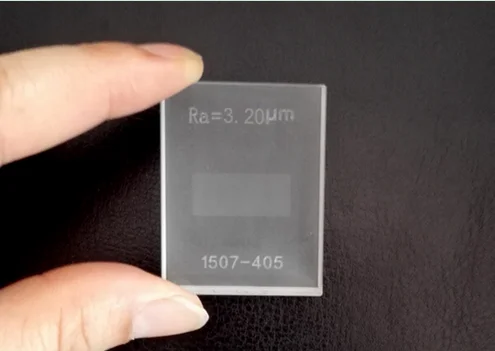

Standard Roughness Calibration Block Multi-engraved lines (Square Wave) Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: Ra=0.1μm, 0.2μm, 0.4μm, 0.8μm, 1.6μm, 3.2μm, 6.4μm Customized Value and Sine Wave available, welcome to inquire.

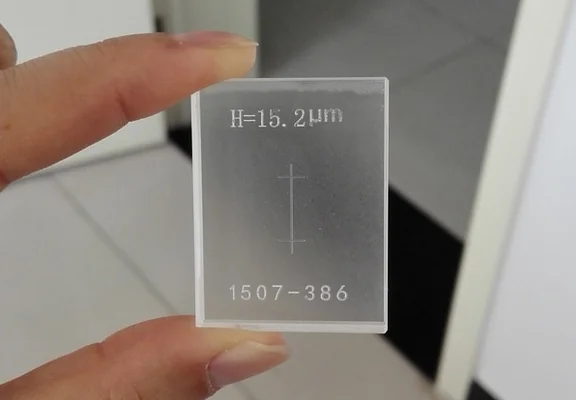

Standard Roughness Calibration Block Single engraved lines Made by optical glass, with high hardness, high accuracy standard roughness value, anti-scratch, has longer life than metal roughness block. Meet standard GB/T19067.1-2003 and ISO5436-1:2000 Approximation: H10-20μm   (roughness tester use filter D-P, test RT value) Customized Value available, welcome to inquire.

Roughness Comparator (30 pcs/set) This set contains standards of the six most important machining methods in the prevalent “AA” values. These surface roughness is used to compare and determine the degree of the surface finish by comparision method and eye estimation or magnifying glass.The surface rough contast blocks is made of 45 super carbor steel except the GCr15 which is using to plat lapping the sample block. All 30 speciments are calibrated in u”AA (Arithmetical Average) and in the metric equivalents um Ra.

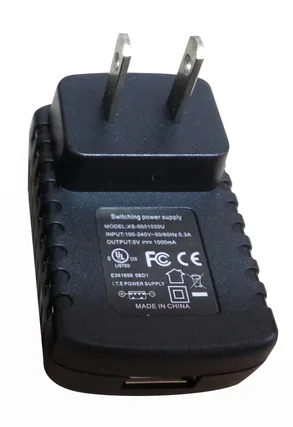

Charge for Surface Roughness Tester
Charger: US and EU standard optional

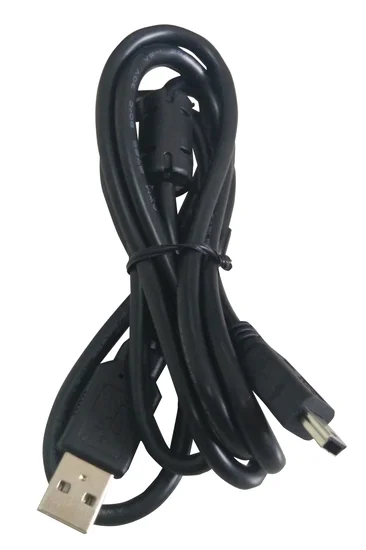

Cable for Surface Roughness Tester

Cable: USB interface

Mini thermal printer External printer, connect by USB interface, suitable for Kairda models.

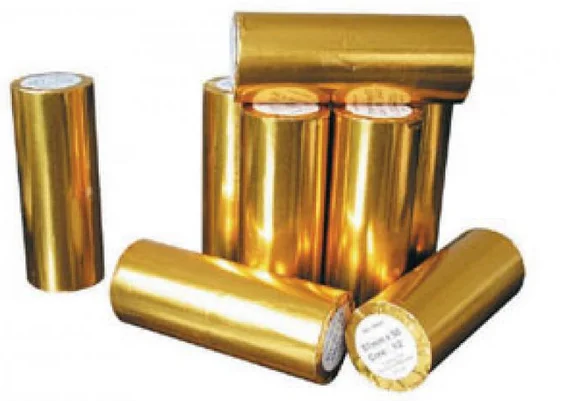

Thermal printing paper Suitable for mini thermal printer and Kaidas’s tester with built-in printer Packing: 10pcs/bag Paper Width :  57mm(56.18mm) Roll Diameter : Ø = 30 mm
